• Air conditioning, single-zone
• Air vents, rear, heating/cooling (Not available on Regular Cab models.)
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
• Compass, located in instrument cluster
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Door locks, power

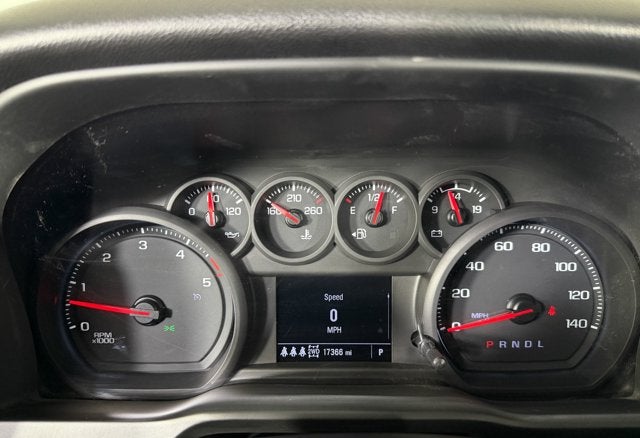

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Remote Keyless Entry with 2 transmitters
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Seat trim, Vinyl

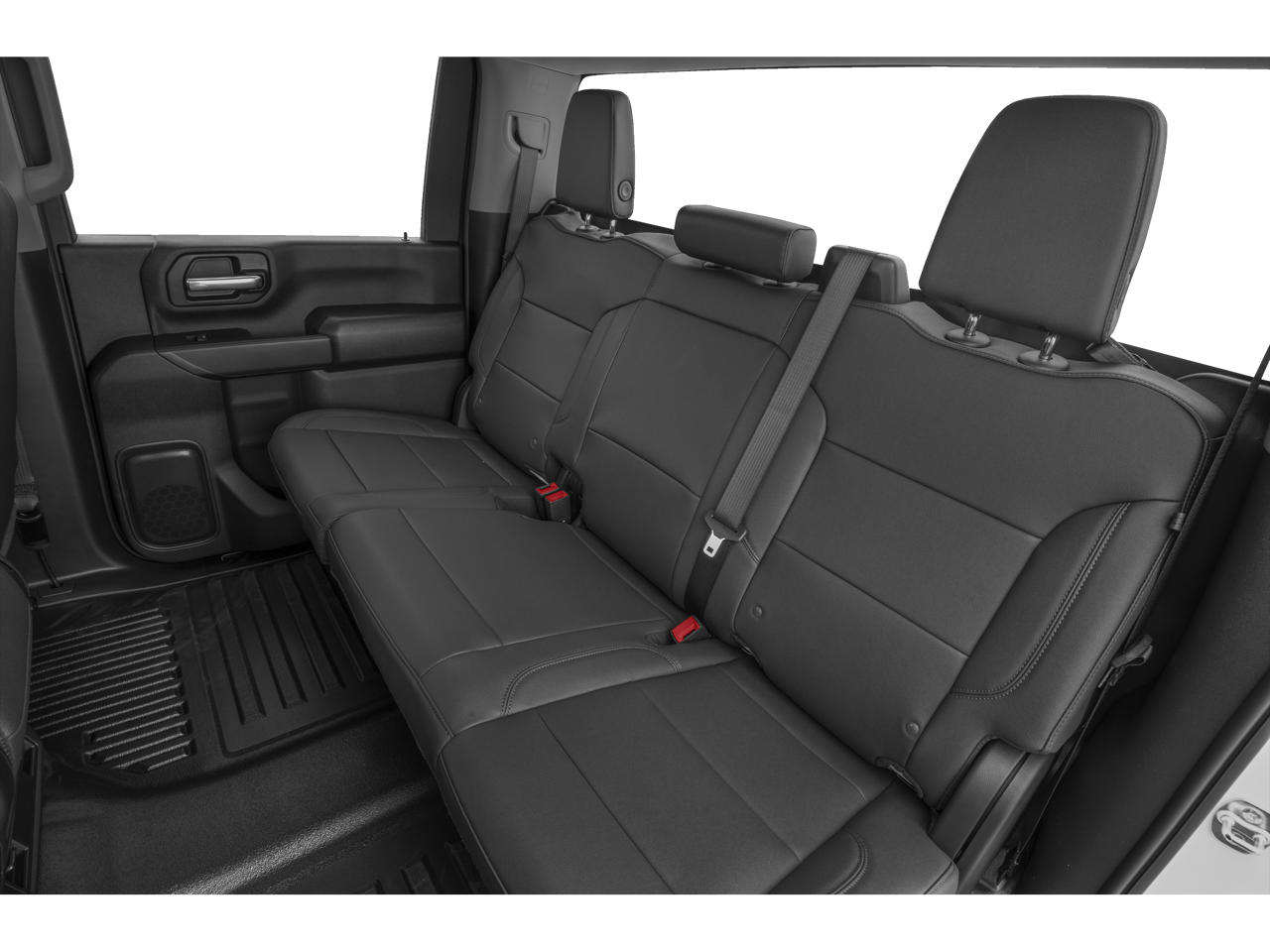

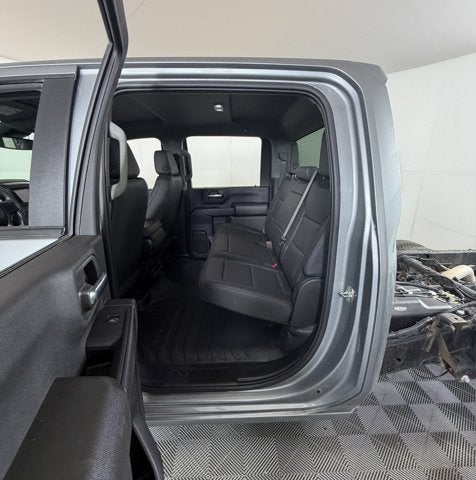

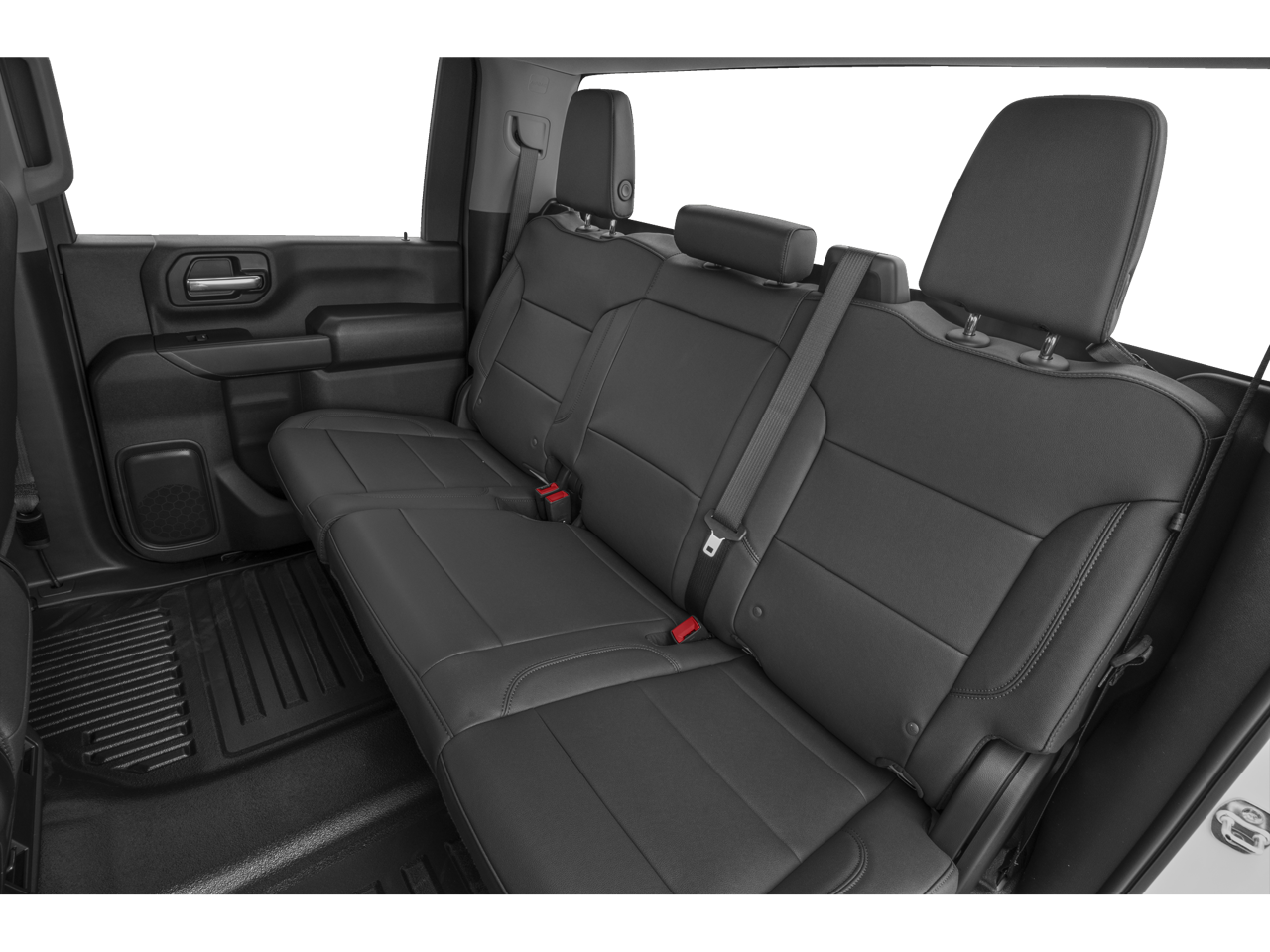

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab or Double Cab model.)

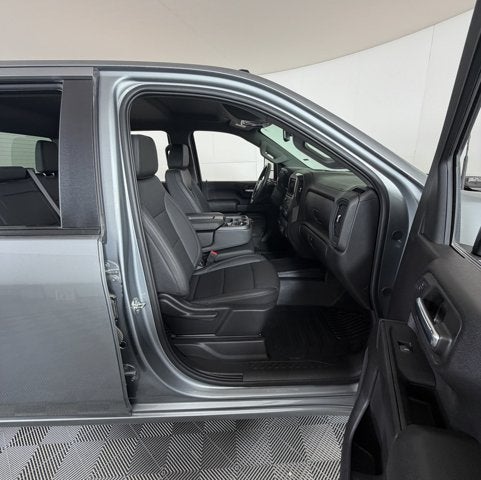

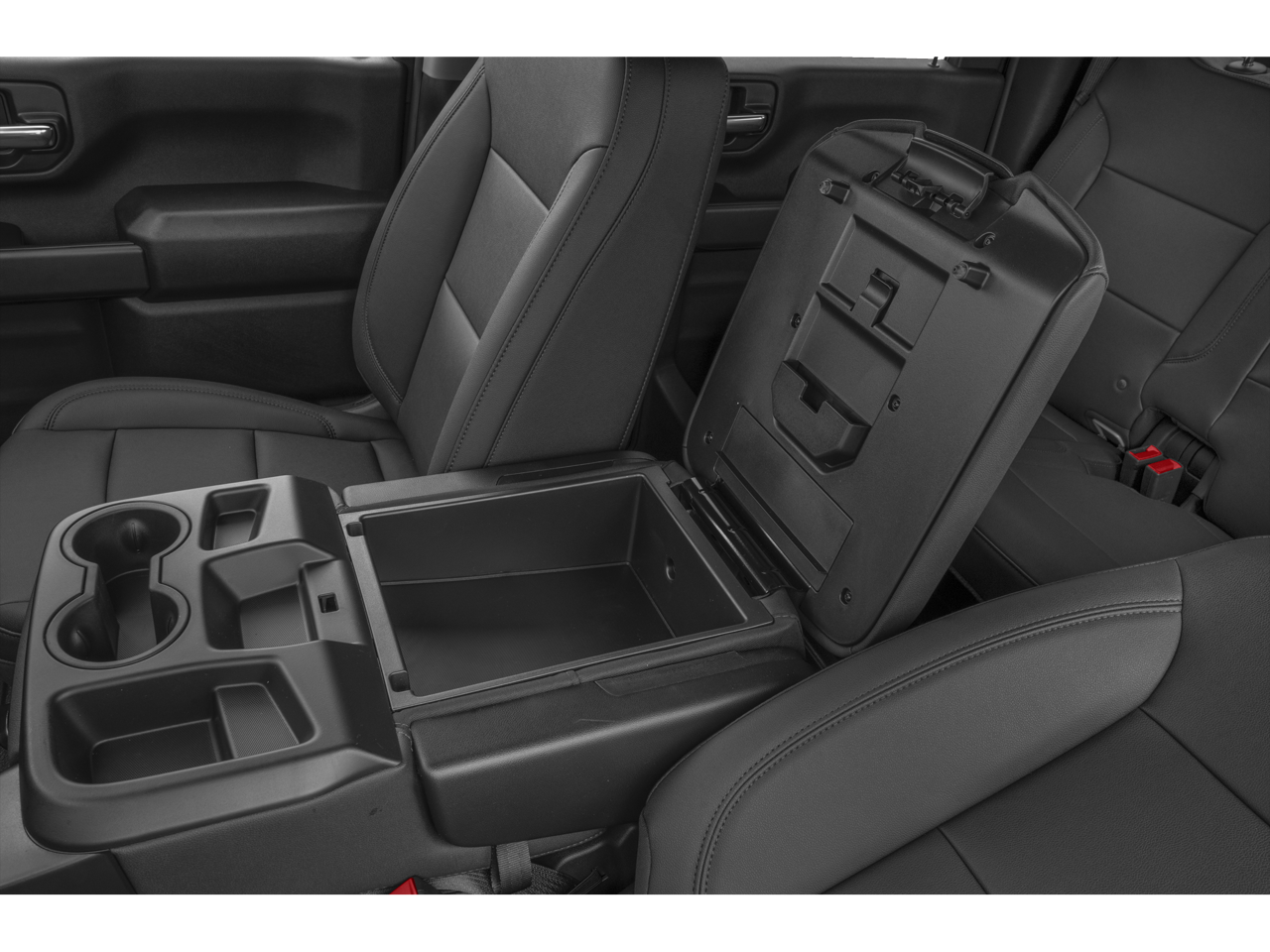

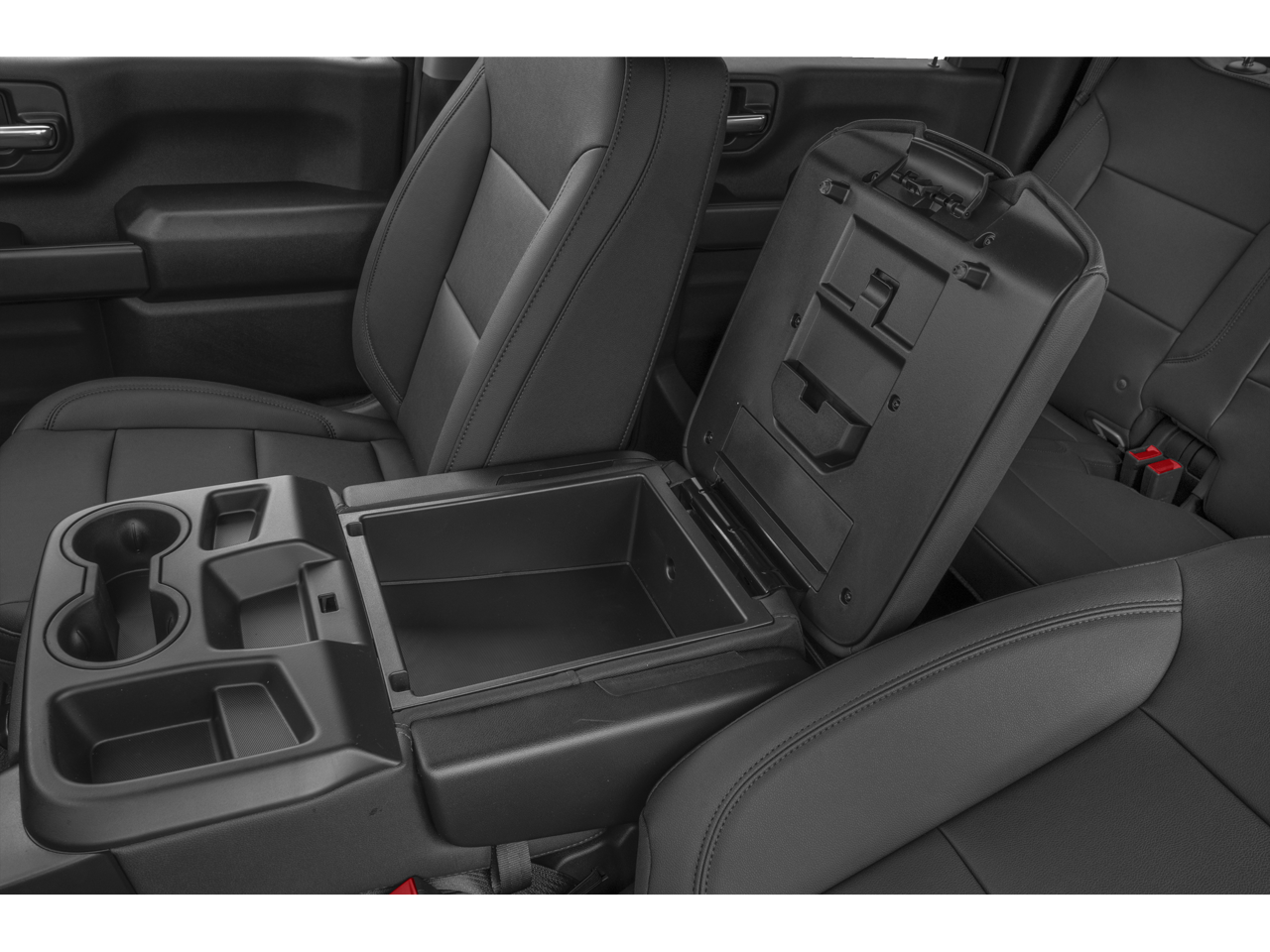

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Steering column, Tilt-Wheel, manual with wheel locking security feature

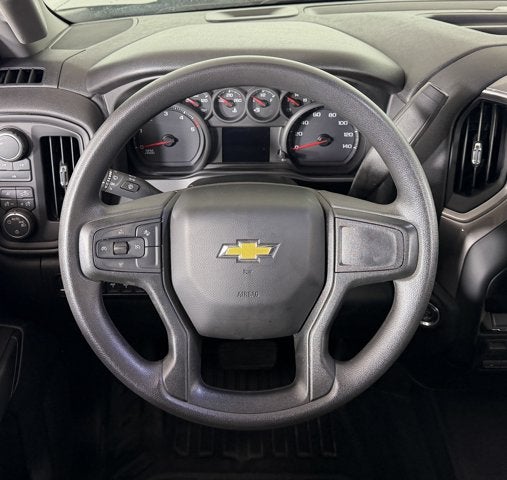

• Steering wheel, urethane
• USB Ports, 2, Charge/Data ports located on instrument panel
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down (Not available with Regular Cab models.)
• Wireless Phone Projection for Apple CarPlay and Android Auto

• Air filter, heavy-duty
• Air filtration monitoring
• Auto-locking rear differential
• Brake lining wear indicator
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Durabed, pickup bed
• Exhaust, single, side
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Push Button Start
• Recovery hooks, front, frame-mounted, Black
• Steering, Recirculating ball with smart flow power steering system
• Suspension Package
• Trailer brake controller, integrated
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)

• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Emergency Braking
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Daytime Running Lamps with automatic exterior lamp control
• Following Distance Indicator
• Forward Collision Alert
• Front Pedestrian Braking
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Indicator-Seat Belt WARNING, Rear Seat (Requires Crew Cab or Double Cab model.)
• Lane Departure Warning
• OnStar Equipped (subscription required)
• OnStar Services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Seat Belt Adjustable Guide Loops front row only (Included and only available on Crew Cab and Double Cab models.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire) (Not included on dual rear wheel models.)

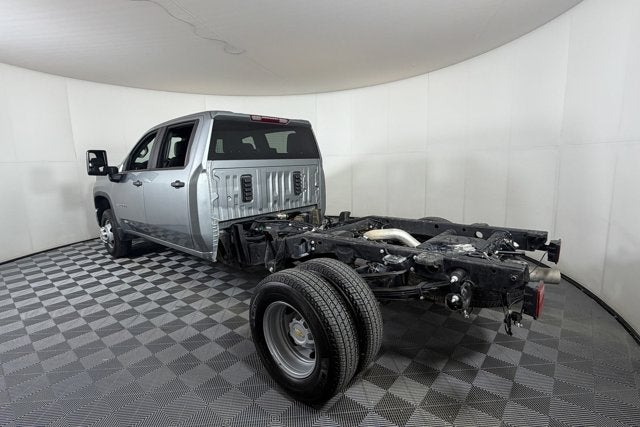

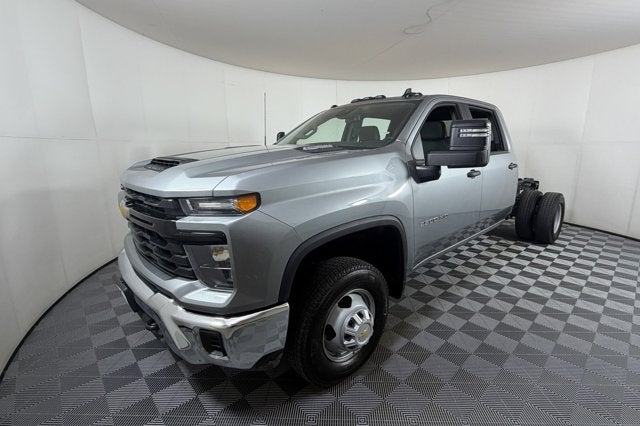

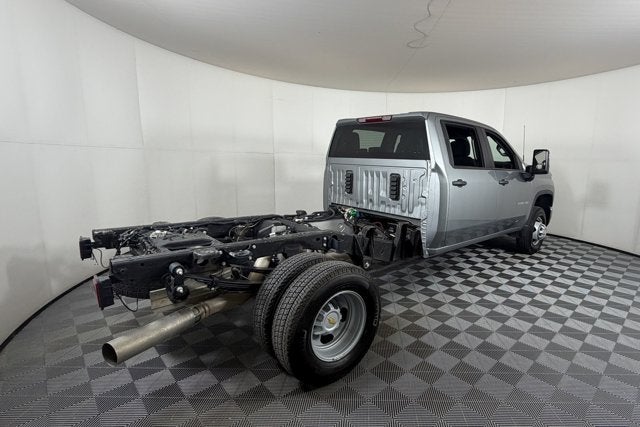

PICKUP BED, DELETE

• includes capped fuel fill
• (SFW) Back-up alarm calibration
• (9J4) rear bumper delete
• (9L3) spare tire delete and spare tire carrier delete.

WT CONVENIENCE PACKAGE

• includes (QT5) EZ Lift power lock and release tailgate
• (AKO) tinted windows
• (C49) rear-window defogger
• (DBG) power trailer mirrors with heated upper glass and manual extending/folding

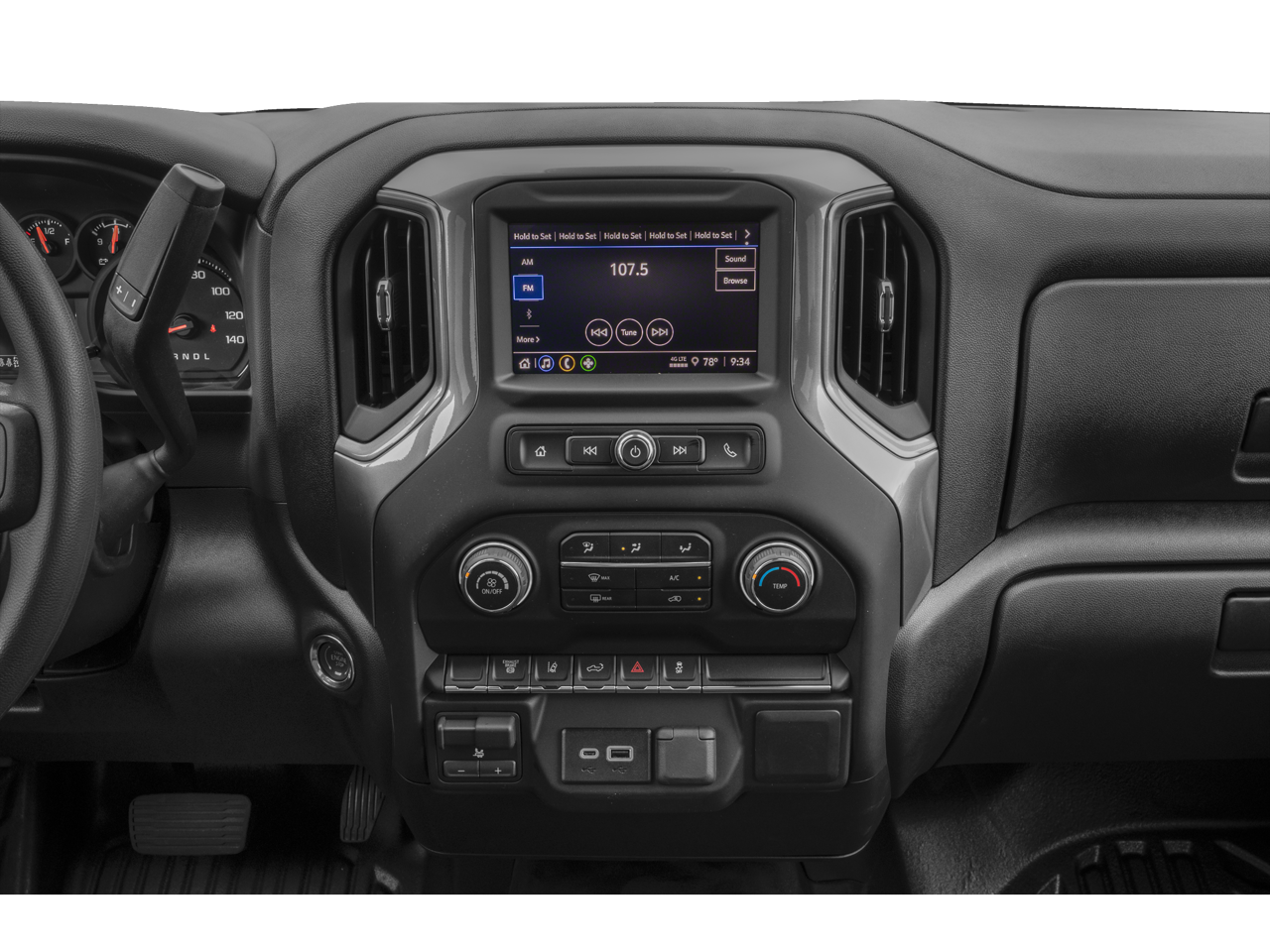

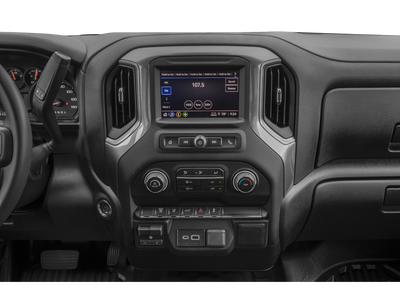

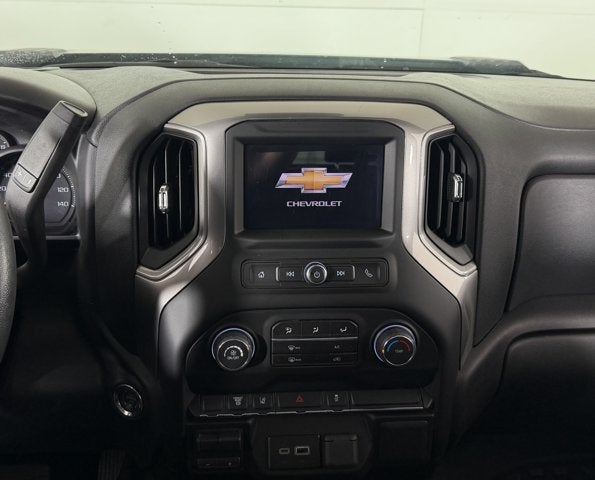

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM, 7" DIAGONAL HD COLOR TOUCHSCREEN, AM/FM STEREO

• Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)

MIRRORS, OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS

• lower convex mirrors
• turn signal indicators
• puddle lamps
• perimeter lighting
• auxiliary lighting
• power folding/manual extending (extends 3.31" [84.25mm]) Includes (DD8) auto-dimming rearview mirror.

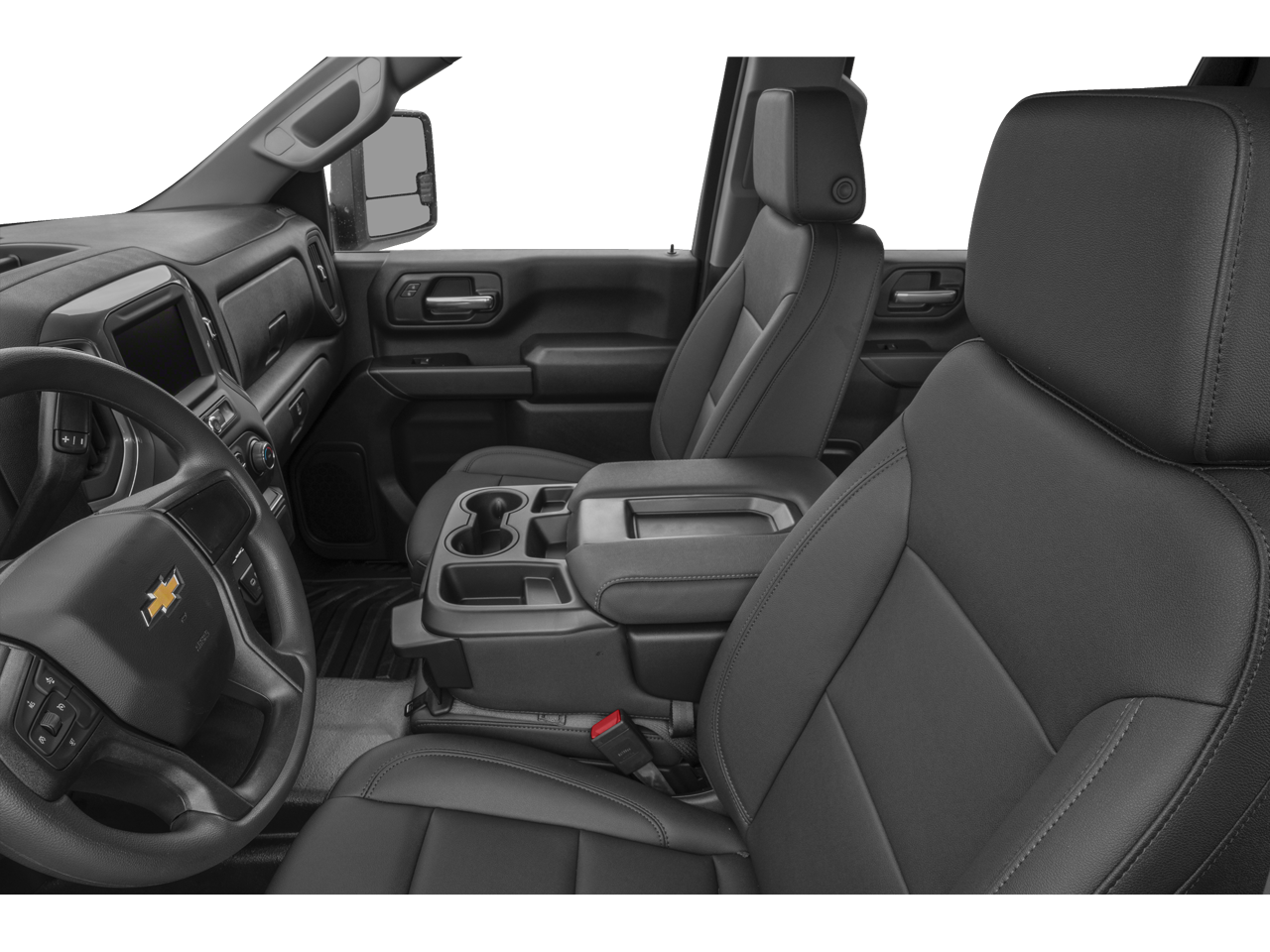

SEATS, FRONT 40/20/40 SPLIT-BENCH

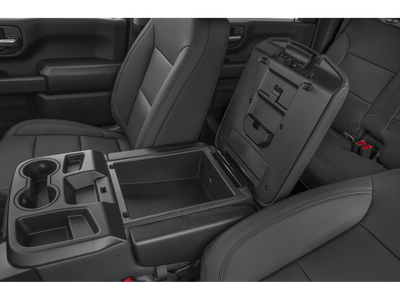

• with covered armrest storage and under-seat storage (lockable) (STD)

DUAL REAR WHEELS

• includes LED hip marker lights

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRE PRESSURE MONITORING SYSTEM

• with Tire Fill Alert (does not apply to spare tire)

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

LICENSE PLATE KIT, FRONT

• (will be shipped to orders with ship-to states that require front license plate)

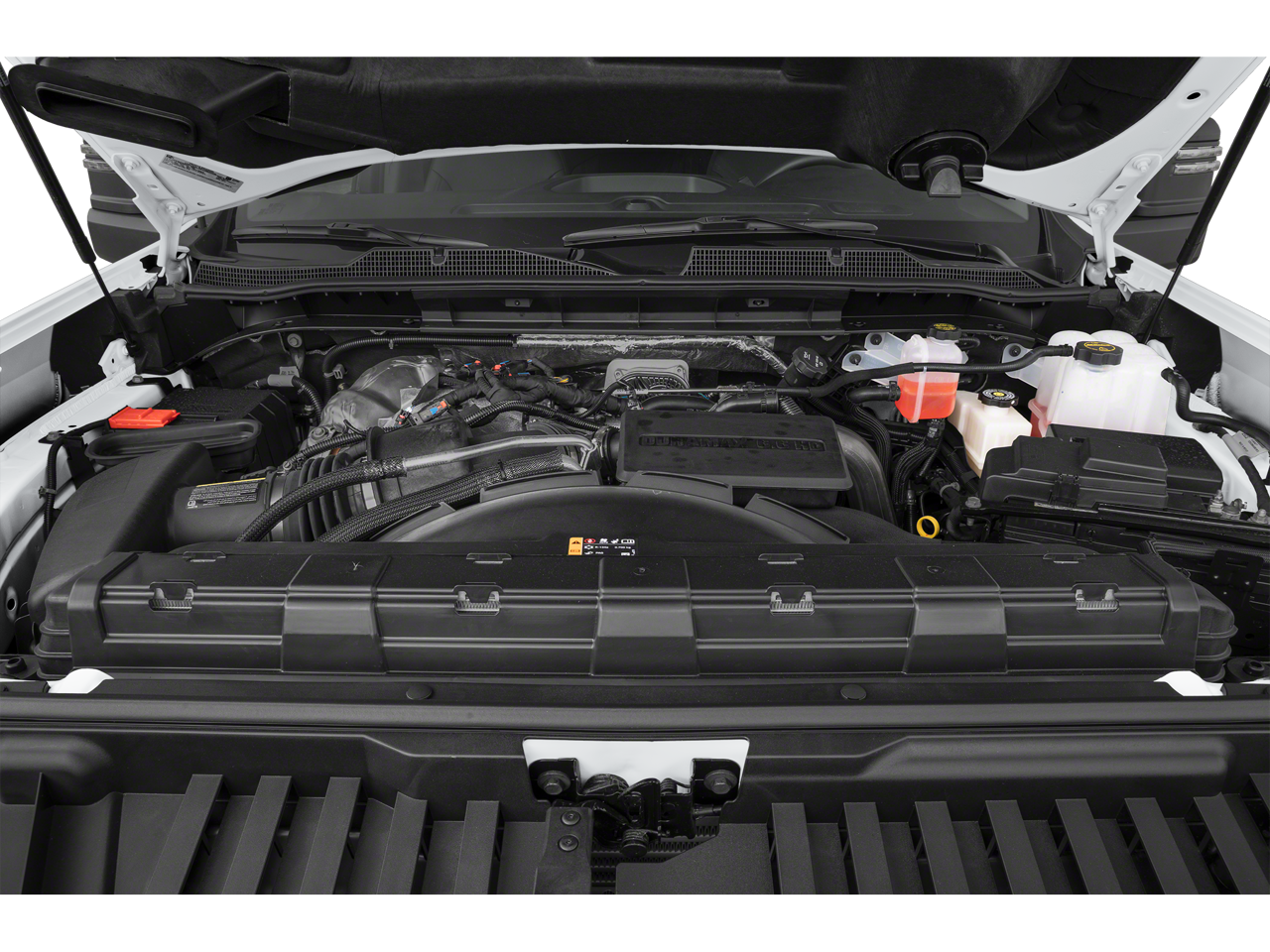

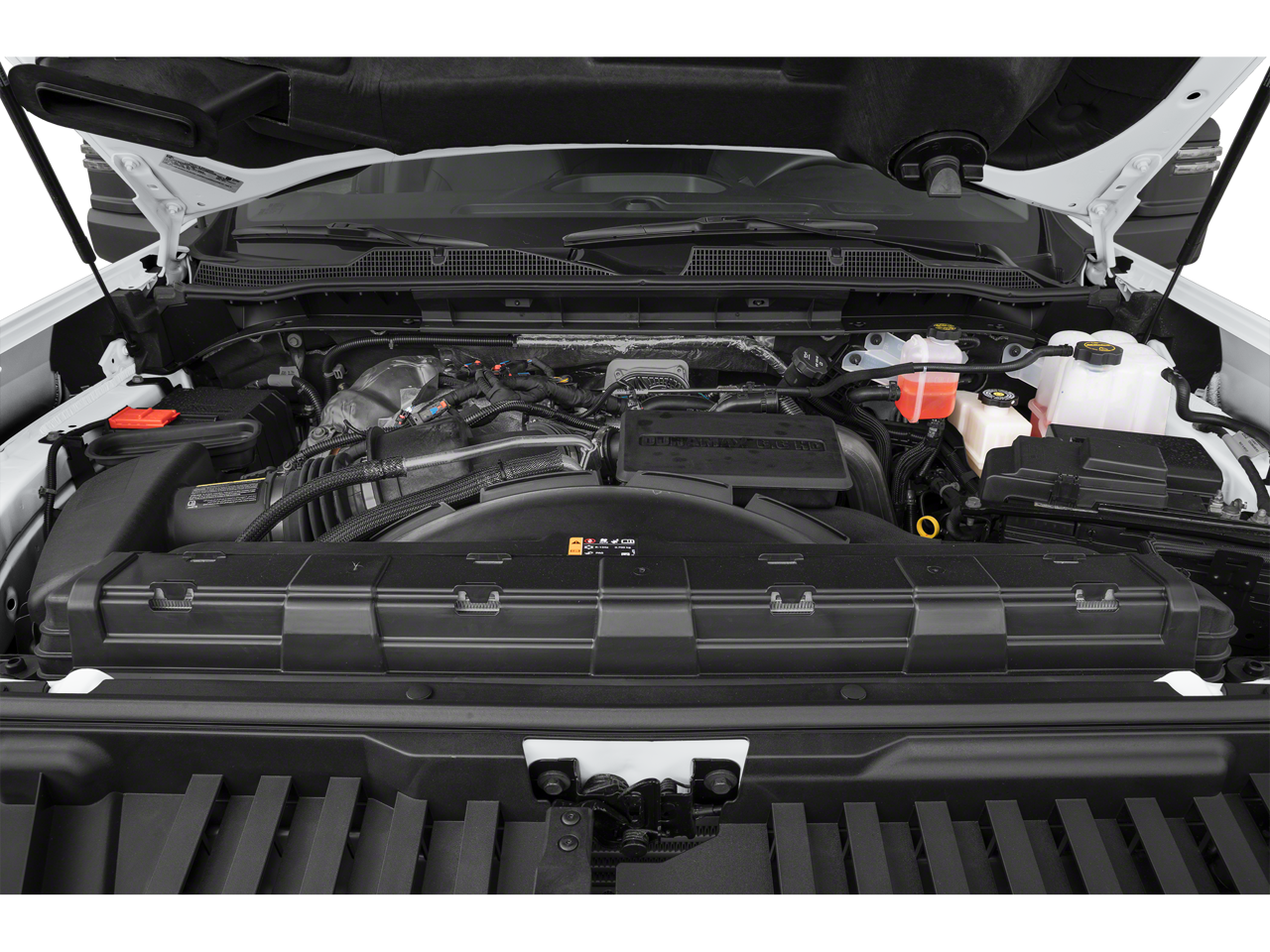

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• (470 hp [350.5 kW] @ 2800 rpm
• 975 lb-ft of torque [1322 Nm] @ 1600 rpm)

• PICKUP BED DELETE includes capped fuel fill (SFW) Back-up alarm calibration (9J4) rear bumper delete (9L3) spare tire delete and spare tire carrier delete.
• WHEEL TRIM CHROME TRIM RING AND CHROME CENTER CAPS
• TIRE SPARE LT235/80R18 BLACKWALL ALL-TERRAIN
• WT CONVENIENCE PACKAGE includes (QT5) EZ Lift power lock and release tailgate (AKO) tinted windows (C49) rear-window defogger (DBG) power trailer mirrors with heated upper glass and manual extending/folding
• TRANSMISSION 10-SPEED AUTOMATIC
• TIRES LT235/80R18 ALL-TERRAIN BLACKWALL
• WHEELS 18" (45.7 CM) POLISHED FORGED ALUMINUM
• DEFOGGER REAR-WINDOW ELECTRIC
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7" DIAGONAL HD COLOR TOUCHSCREEN AM/FM STEREO Bluetooth® audio streaming for 2 active devices voice command pass-through to phone Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS lower convex mirrors turn signal indicators puddle lamps perimeter lighting auxiliary lighting power folding/manual extending (extends 3.31" [84.25mm]) Includes (DD8) auto-dimming rearview mirror.
• BUMPER FRONT CHROME
• SEATS FRONT 40/20/40 SPLIT-BENCH with covered armrest storage and under-seat storage (lockable) (STD)
• WINTER GRILLE COVER
• GLASS DEEP-TINTED

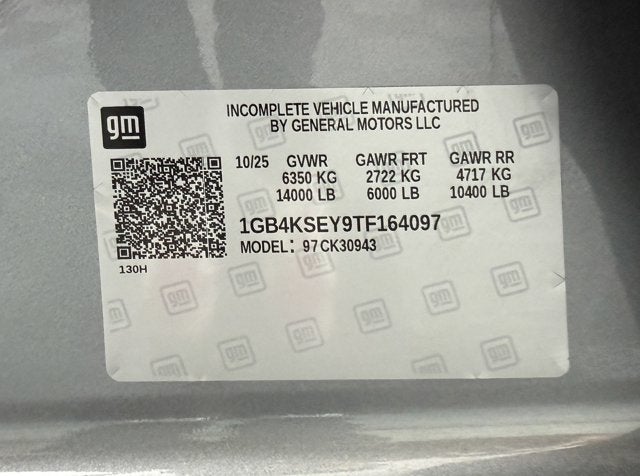

• GVWR 14 000 LBS. (6350 KG) WITH DUAL REAR WHEELS
• ENGINE BLOCK HEATER
• DUAL REAR WHEELS includes LED hip marker lights
• UPFITTER SWITCH KIT (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.
• JET BLACK VINYL SEAT TRIM
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• LAMPS SMOKED AMBER ROOF MARKER (LED)
• BUMPER REAR DELETE
• REAR AXLE 3.42 RATIO
• STERLING GRAY METALLIC
• TIRE PRESSURE MONITORING SYSTEM with Tire Fill Alert (does not apply to spare tire)
• EXHAUST BRAKE
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• LICENSE PLATE KIT FRONT (will be shipped to orders with ship-to states that require front license plate)
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE (470 hp [350.5 kW] @ 2800 rpm 975 lb-ft of torque [1322 Nm] @ 1600 rpm)
• ALTERNATOR 220 AMPS
• Keyless Start
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Daytime Running Lights
• Automatic Highbeams
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Bluetooth® Connection
• Smart Device Integration
• WiFi Hotspot
• Split Bench Seat
• Vinyl Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• Power Outlet
• MP3 Capability
• Auxiliary Audio Input
• A/C
• Front Collision Mitigation
• Front Collision Warning
• Front Collision Mitigation
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Lane Departure Warning
• Front Collision Warning
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 10400
• Gross Axle Wt Rating - Rear (lbs): 7250
• Curb Weight - Front (lbs): 4142
• Curb Weight - Rear (lbs): 2918
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Vehicle Weight Rating Cap (lbs): 11700
• Gross Combined Wt Rating (lbs): 40000
• Gross Combined Wt Rating (lbs): 30000
• Gross Combined Wt Rating (lbs): 26000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 20000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17800
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1780
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 31000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21490
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18230
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 7750
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4450
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5372
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4558
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Rear (Cont.): w/Leaf Springs
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Independent
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QHY
• Front Tire Order Code: QF6
• Rear Tire Order Code: QHY
• Rear Tire Order Code: QF6
• Spare Tire Order Code: ZAE
• Spare Tire Order Code: ZYG
• Front Tire Size: LT235/80R18
• Front Tire Size: LT275/70R18
• Rear Tire Size: LT235/80R18
• Rear Tire Size: LT275/70R18
• Spare Tire Size: LT235/80R18
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 57.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 172
• Length, Overall (in): - TBD -
• Length, Overall (in): 266.06
• Width, Max w/o mirrors (in): 96.75
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 80.04
• Height, Overall (in): 80.67
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.39
• Ground Clearance, Front (in): 11.14
• Ground Clearance, Rear (in): 10.39
• Ground Clearance, Rear (in): 11.14
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -

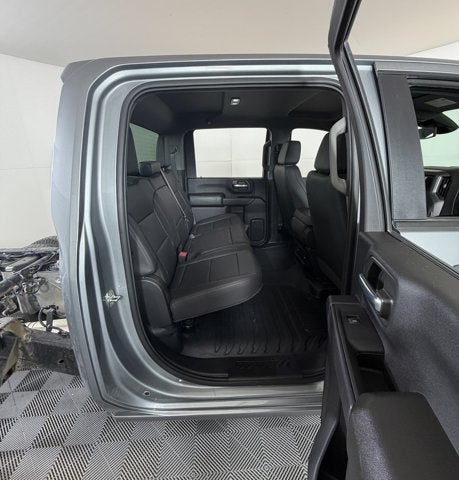

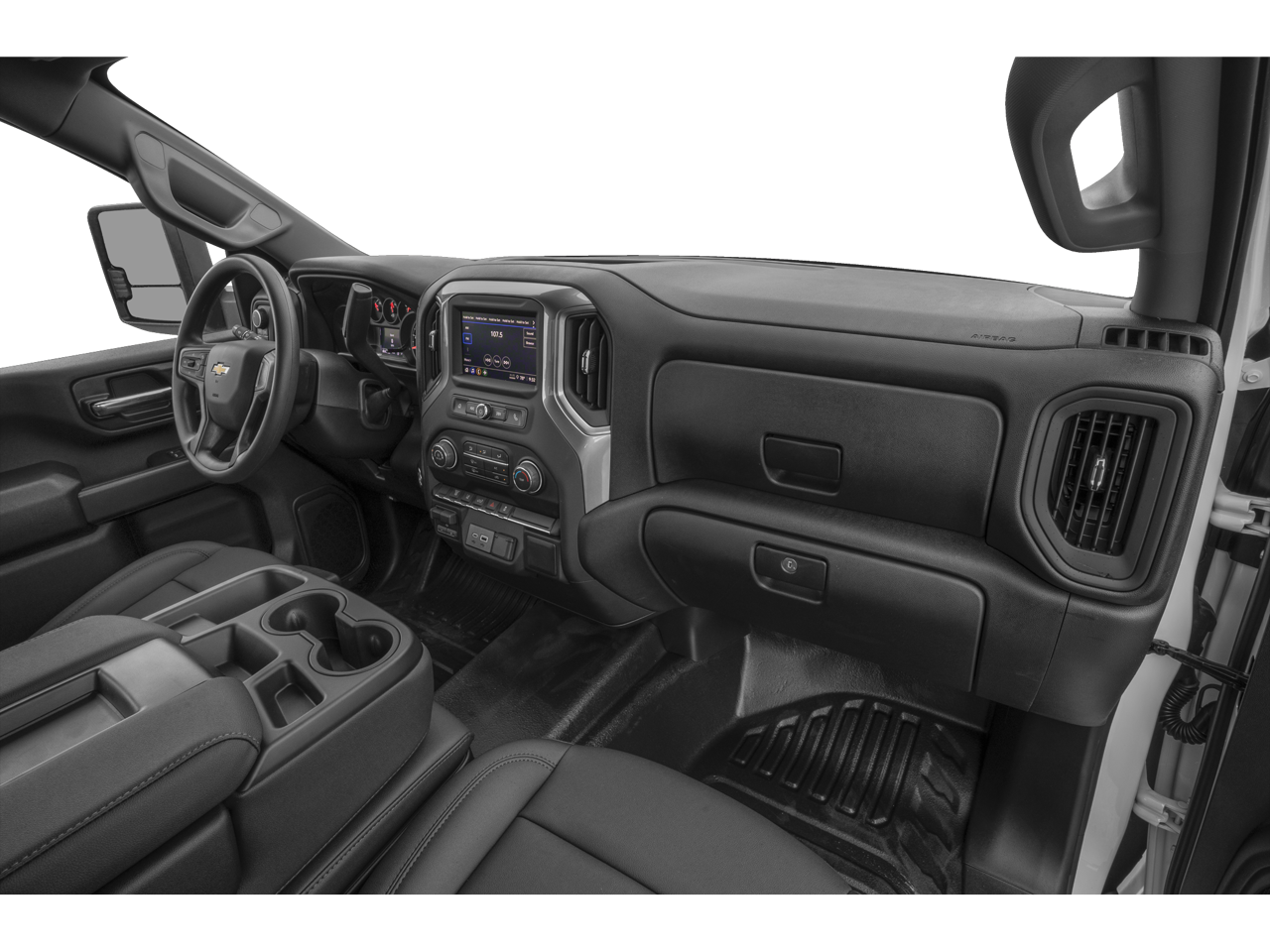

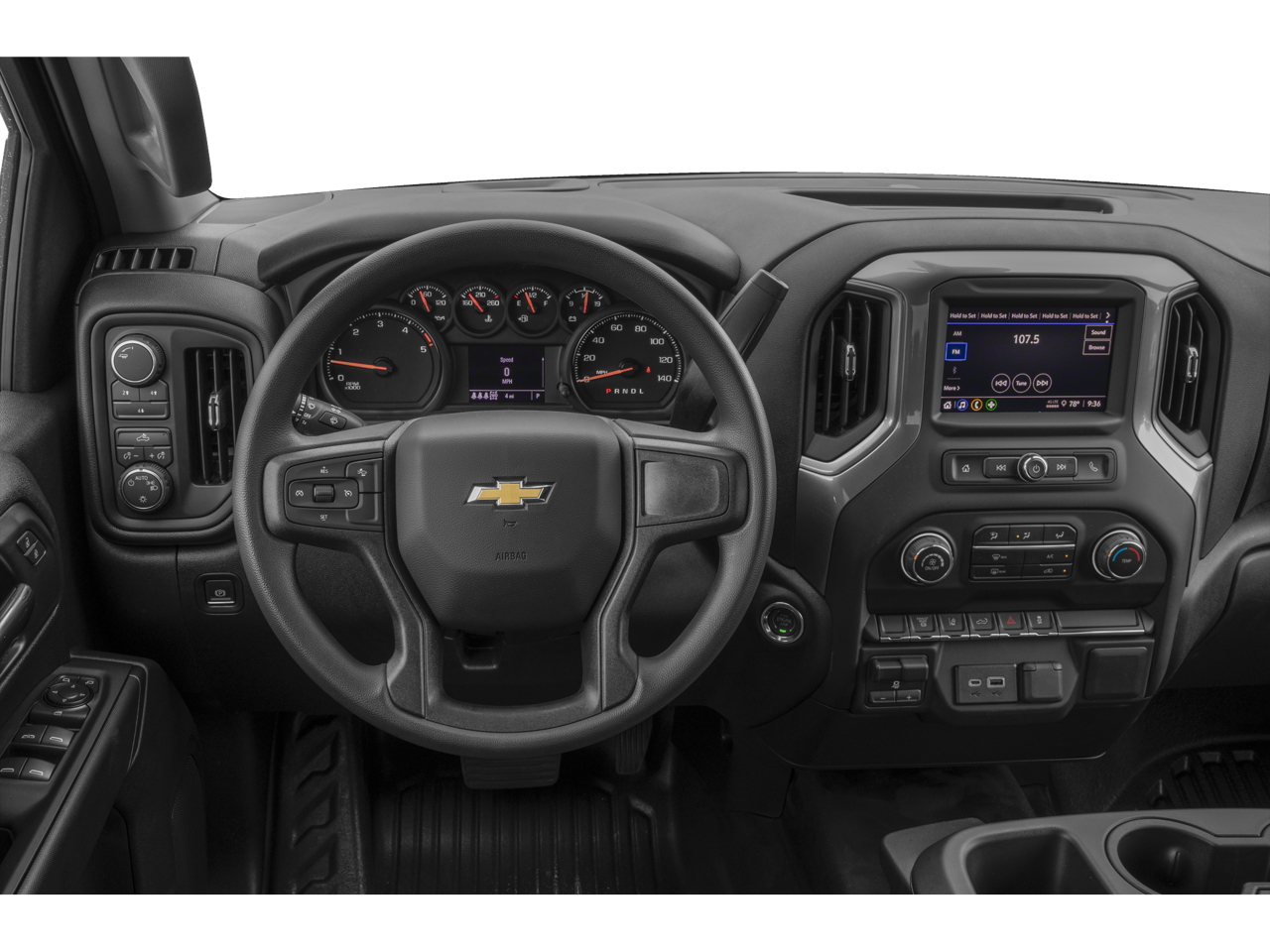

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.54
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

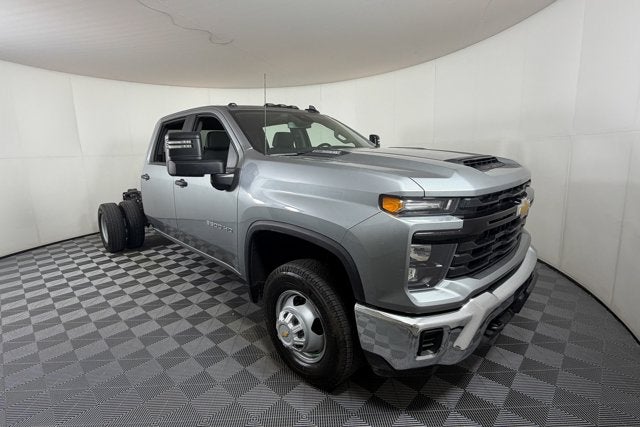

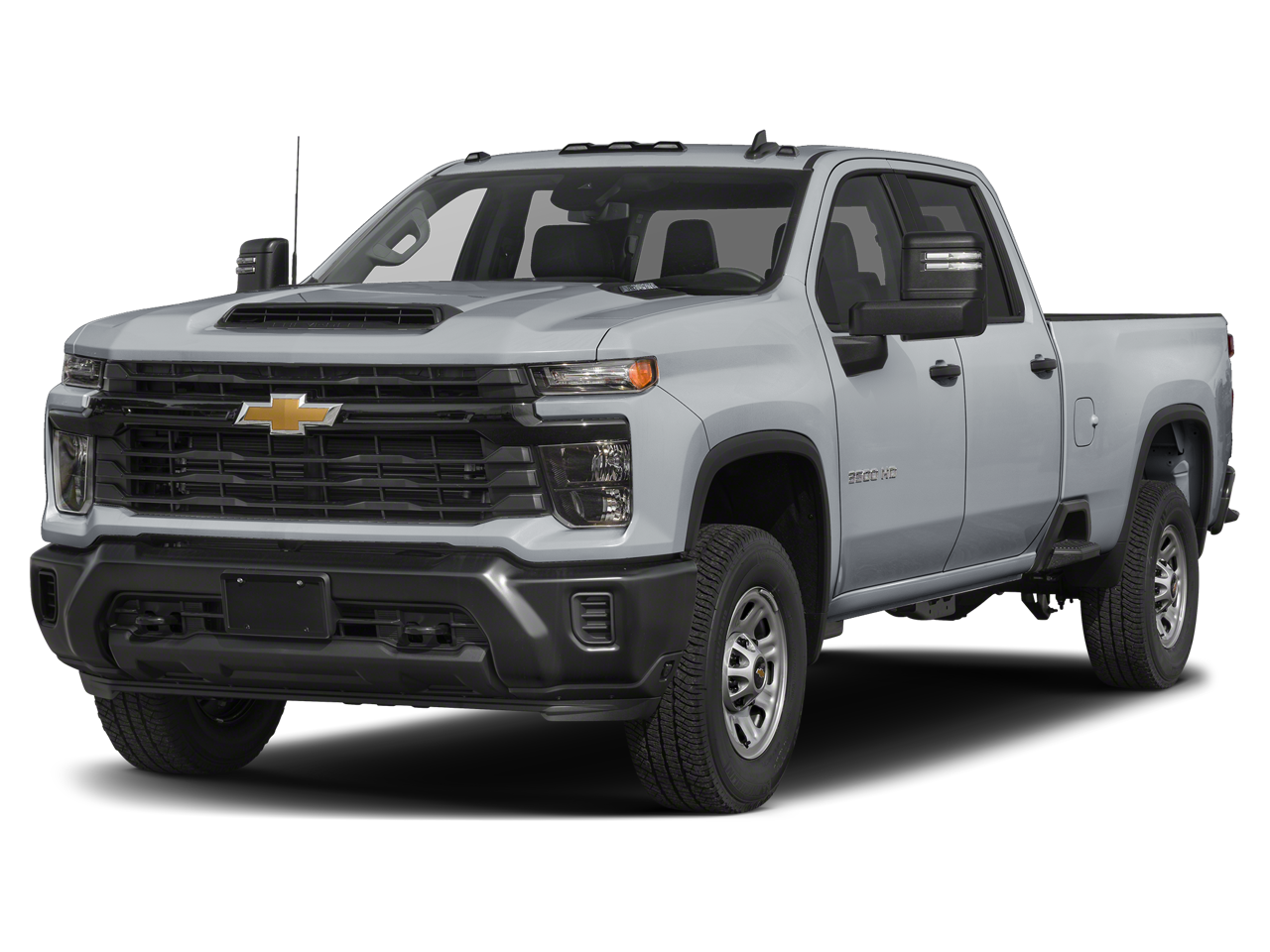

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Chassis Cab
• Body Style: Crew Cab Pickup
• Body Code: ZW9
• Body Code: E63
